Caravan Plan
Top View

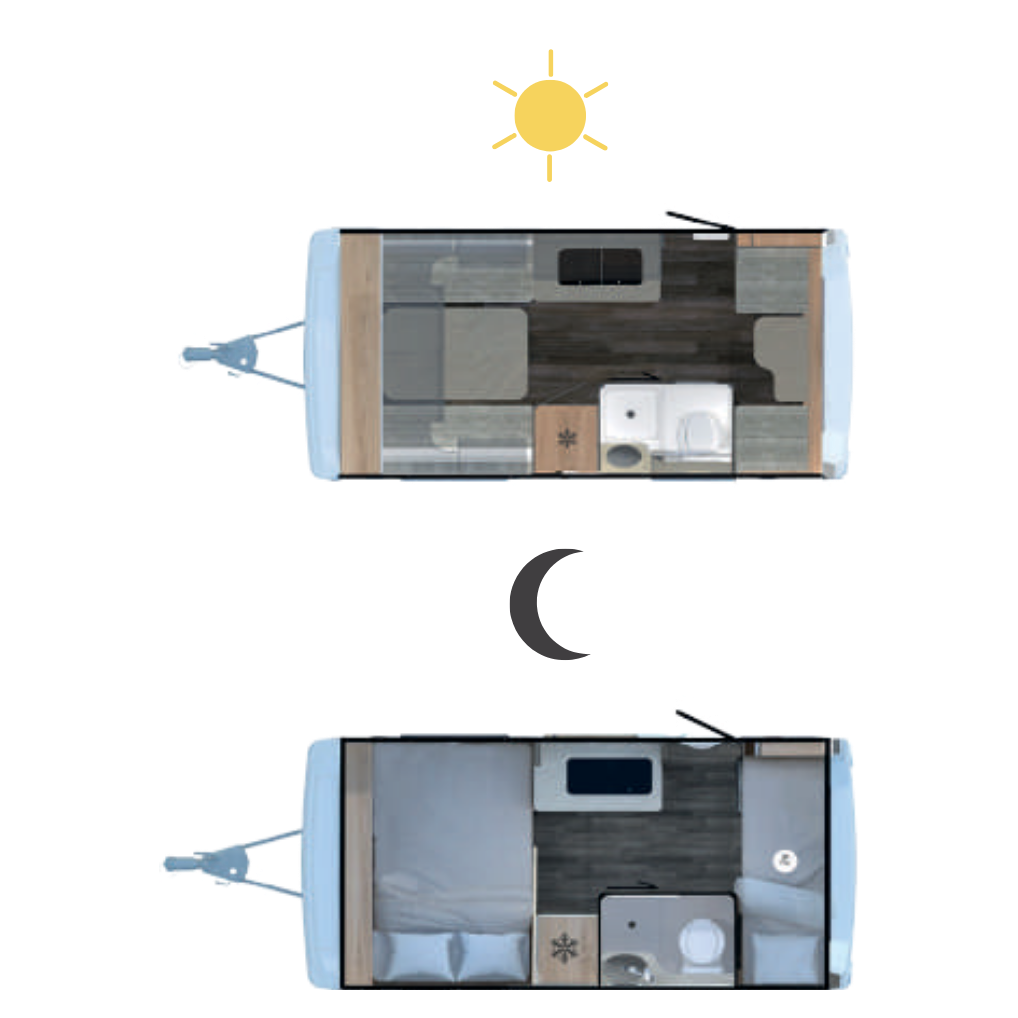

The top view of the Navigo 390-R reveals a smart layout that offers maximum functionality within compact dimensions. The interior floor length of 3900 mm and the total width of 2238 mm ensure the efficient use of every square centimeter, creating a spacious movement corridor within the living area. The strategic positioning of the kitchen, bathroom, and storage units optimizes the caravan's center of gravity while offering the user an ergonomic mobile living experience at every point. The fluid transition between day and night usage modes symbolizes the Navigo 390-R's versatile design philosophy. The structure of the large seating group, which can quickly transform into a comfortable sleeping area, provides both social interaction and quality rest in a limited space. The net interior height of 1980 mm makes it possible to move freely without headroom restrictions in all functional areas seen in this top-down view.

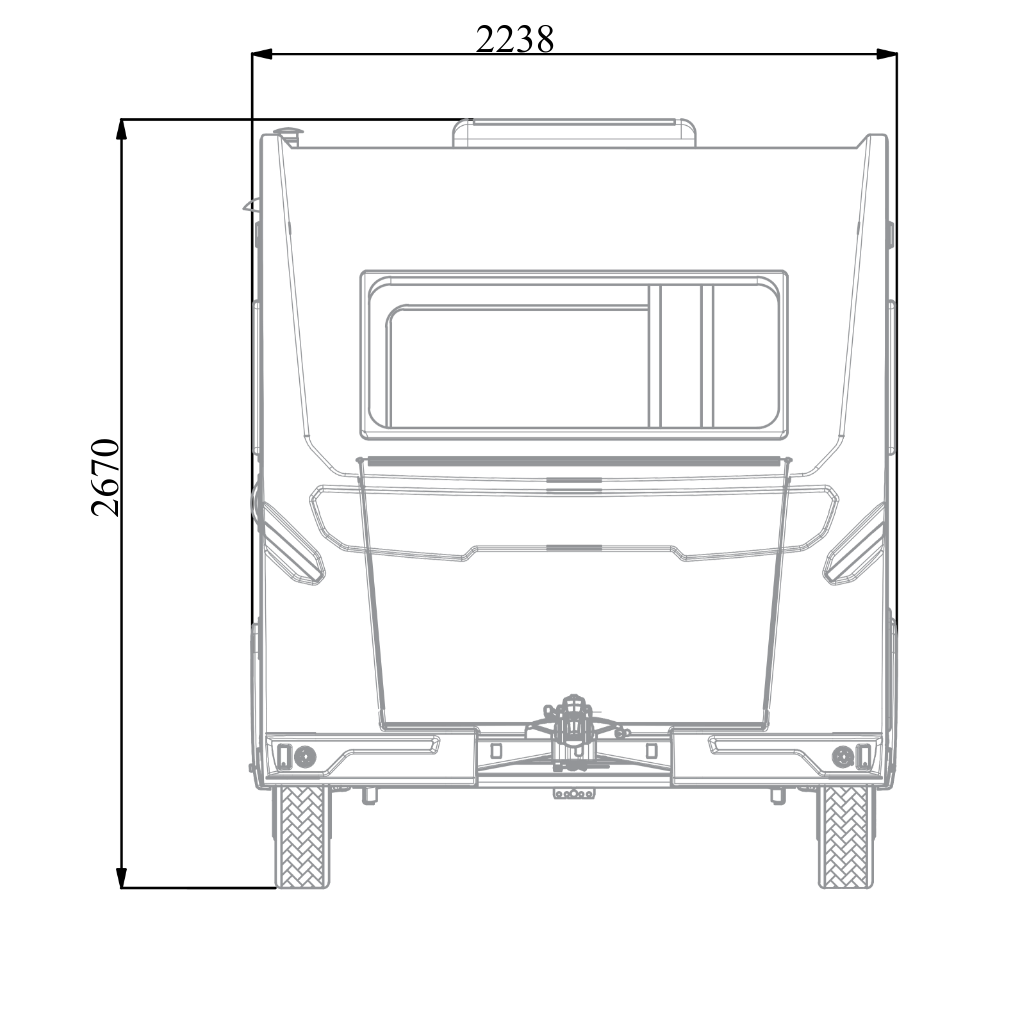

Front View
The front profile of the Navigo 390-R displays a balanced stance on the road, combining the series' compact and agile structure with modern engineering details. The total width, determined as 2238 mm in the technical diagram, ensures that this model offers great maneuverability in narrow roads and maneuvering areas, while bringing road-holding safety to the highest level with its optimized track width. The total height of 2670 mm on the vertical plane, combined with the aerodynamic roof structure, contributes to fuel economy while directing the wind in the most efficient way. While the wide window structure integrated into the front facade guarantees the spaciousness of the interior, the reinforced connection points on the lower chassis reflect Mobihome's high safety standards and robust technical infrastructure.
Rear View

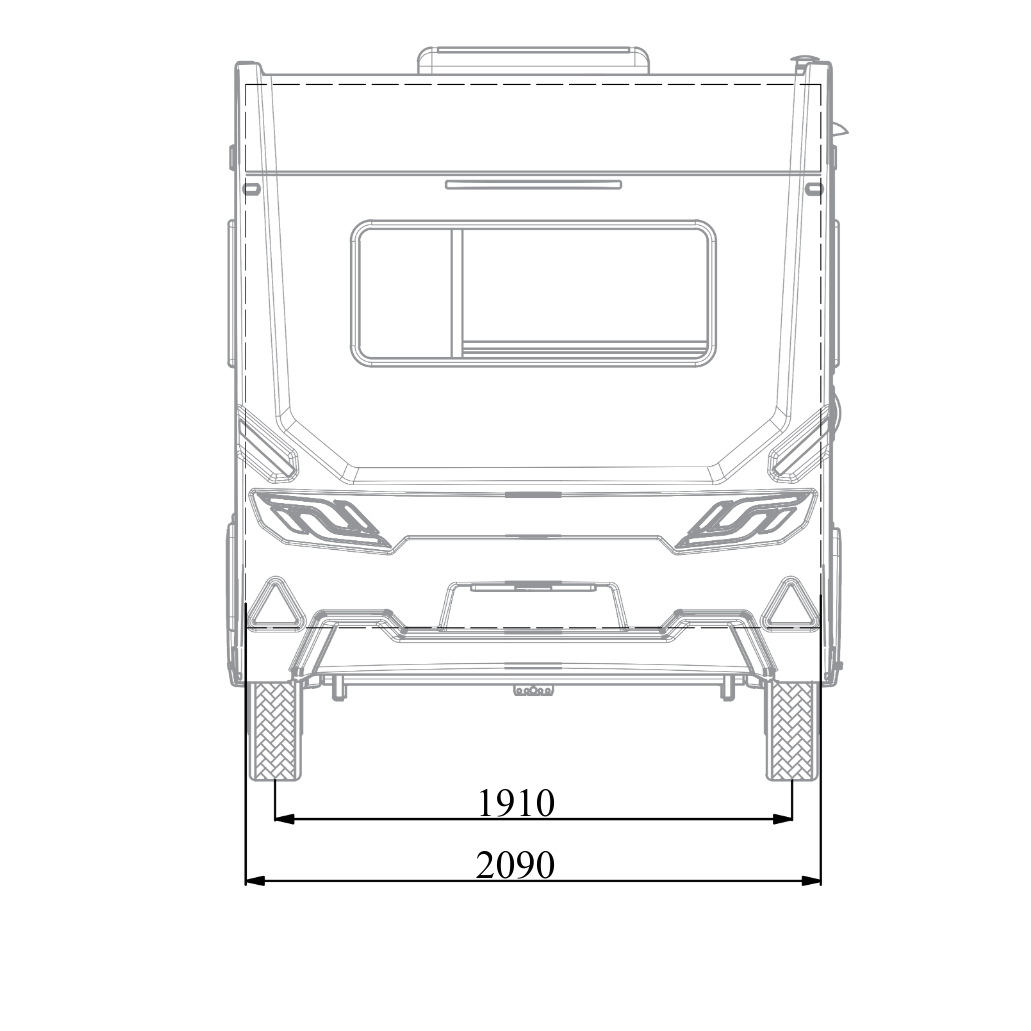

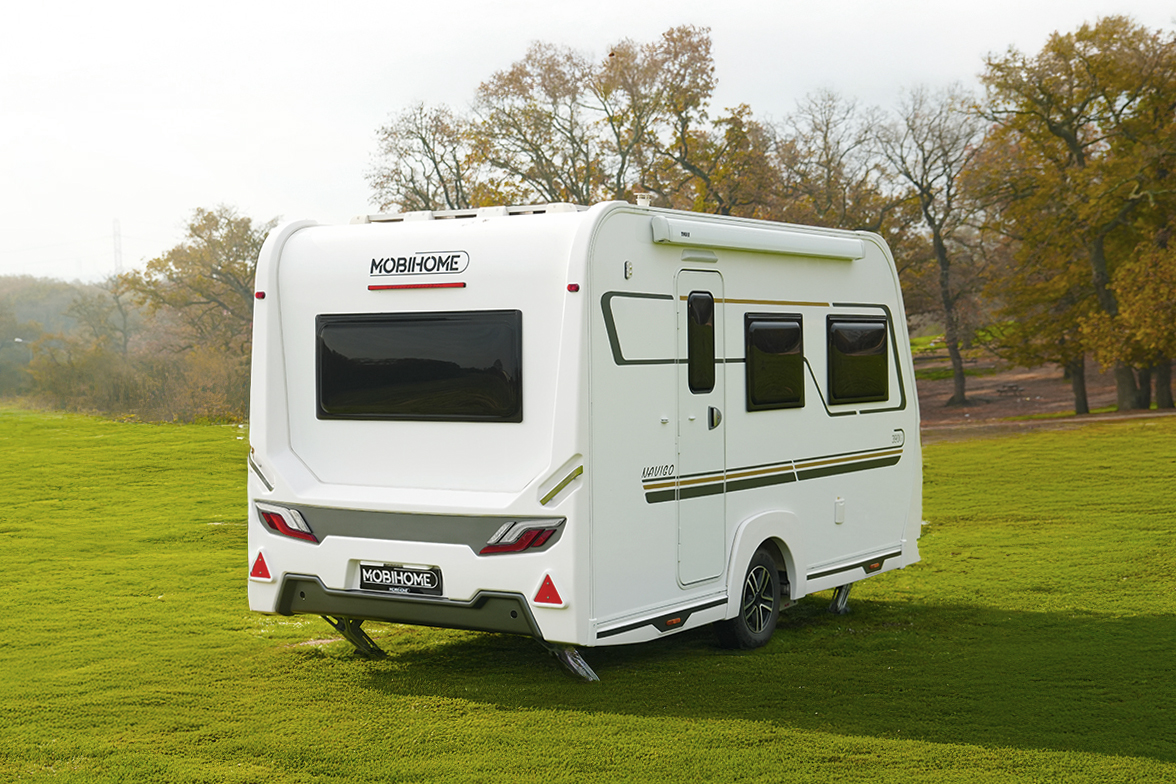

When viewed from the rear profile, the Navigo 390-R offers a reassuring design that stands firmly on the ground with its 2090 mm wide base footprint. The rear panel, shaped with sharp and modern lines, not only provides aesthetic integrity but also reinforces body durability, promising long-lasting use. The volume offered by the 2670 mm exterior height makes itself evident in the rear view as well, signaling the spacious living area within. This structure, integrated with the rear lighting groups and bumper design, ensures maximum visibility during night driving while elegantly completing the caravan's characteristic silhouette.

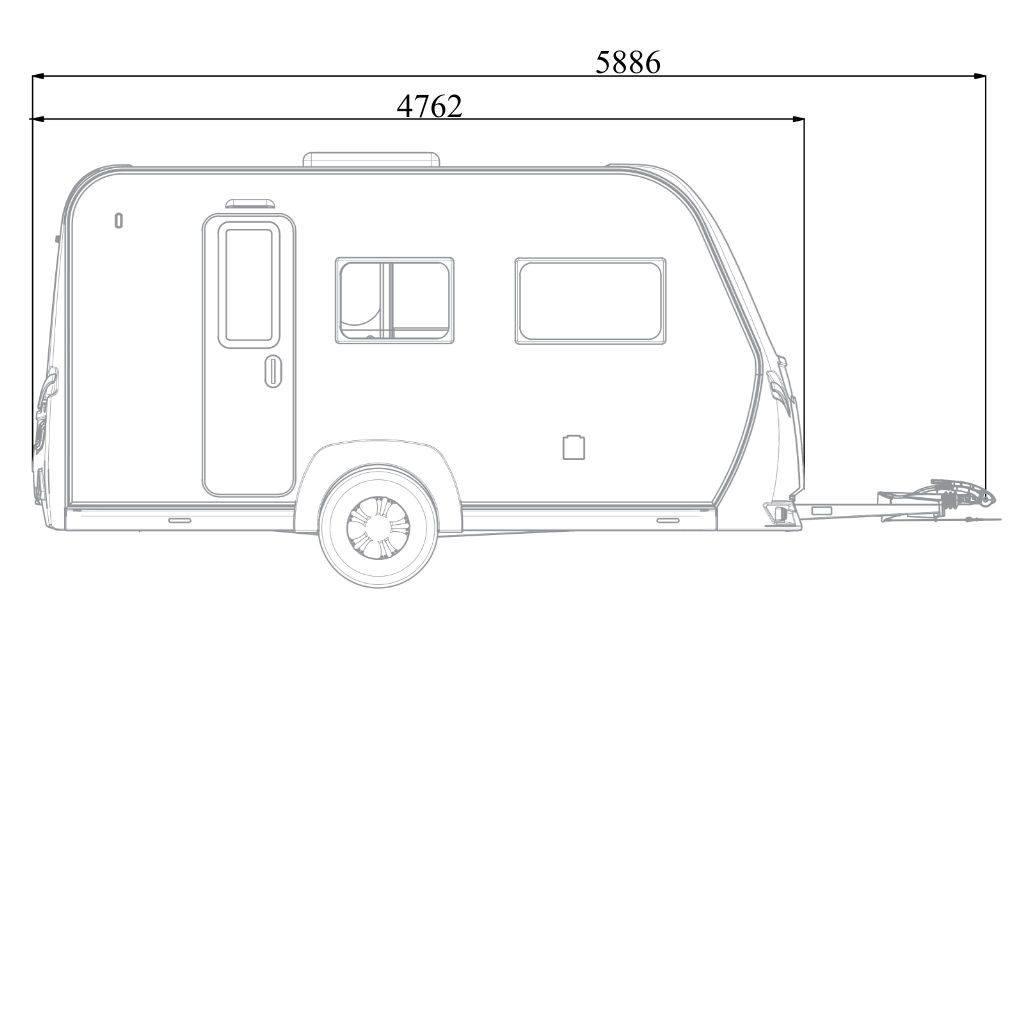

Right Side View

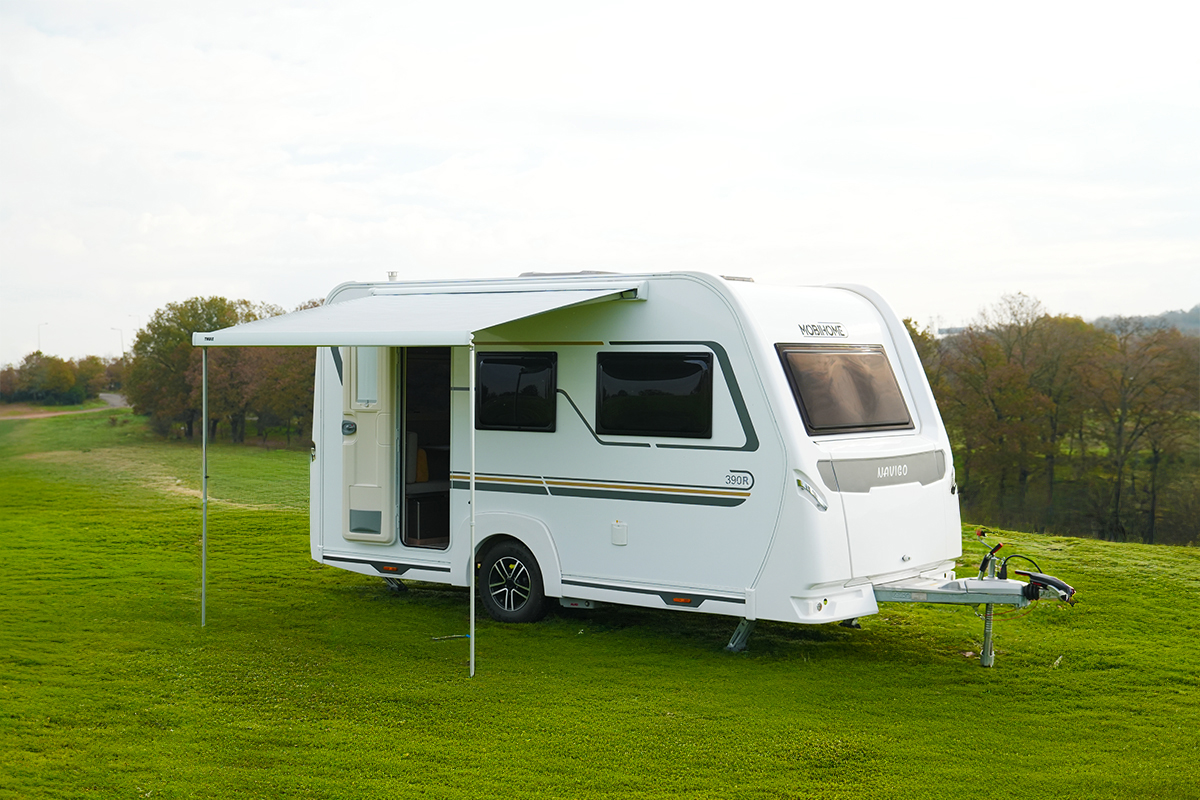

The right side view of the Navigo 390-R offers a functional living design with its entrance door and strategically positioned windows. The total length of 5886 mm and the upper body length of 4762 mm ensure that the vehicle remains stable during highway driving while providing practical placement options at campsites. The central wheel position optimizes weight distribution, strengthening the caravan's driving dynamics and balancing the load on the towing vehicle. While the fluid lines on the body support aerodynamic efficiency, Mobihome's high-quality panel technology creates a comfortable environment by isolating noise and weather conditions from the outside world.
Left Side View
On the left side profile, wide glass surfaces and lean lines stretching along the 3900 mm body length draw attention. This view reveals the spacious interior volume offered despite the caravan's compact exterior dimensions, while the panoramic windows give the user the chance to establish an uninterrupted connection with the outside world. The net interior height of 1980 mm takes the feeling of spaciousness to the peak by granting the user the freedom to move without restriction inside. The upper roof structure, which begins with aerodynamic curves and continues with a straight line, minimizes wind resistance to prevent swaying during travel, making the Navigo 390-R a powerful piece of engineering ready for any journey.
Standard Equipment
2-Year Manufacturer Warranty - 10-Year Spare Parts Warranty
Navigo 390 is a compact and functional caravan model that offers flexibility to its users with two different layout options (390U and 390R). With its compact dimensions and rational interior design, it aims to provide travel enthusiasts with a comfortable experience.
The model has a total length of 5886 mm, a total height of 2670 mm, and a total width of 2238 mm. Corresponding to these exterior dimensions, it offers a spacious living area with an interior length of 3900 mm, an interior width of 2090 mm, and an interior ceiling height of 1980 mm. The tire track width of 1910 mm contributes to balanced road handling.
In terms of carrying capacity, the standard maximum loading limit is set at 1350 kg, and this limit can be optionally increased up to 1500 kg. The floor, roof, and wall thicknesses of 40/35/35 mm enhance both the durability and the insulation performance of the caravan.
| Dimensions | ||||
| A | Total Length | 5886 mm | Standard Max Loading Limit | 1350 KG |
| B | Total Height | 2670 mm | Optional Maximum Loading Limit | 1500 KG |
| C | Total Width | 2238 mm | Floor, Roof, Wall Thicknesses | 40/35/35 mm |
| D | Cabin Length | 4762 mm | Seating Area Capacity | 6 People |
| E | Interior Length | 3900 mm | Bed Capacity | 4 People |
| F | Interior Height | 1980 mm | Front Bed Size | 1400 x 2065 mm |
| G | Interior Width | 2090 mm | Rear Bed Size | 750 x 1955 mm |
| H | Tire Track Width | 1910 mm | ||
Chassis and Body
-
Chassis, braked coupling system 1350 kg (AL-KO)
-
Anti-sway stabilizer with lock (AL-KO)
-
Shock absorber, 2 units (AL-KO)
-
Drawbar cover
-
Tires and rims 185/R14/C (AL-KO)
-
Jockey wheel, 150 kg (AL-KO)
-
Support legs, Big Foot base plate, 4 units (AL-KO)
-
Cabin panels; GRP outer surface, coated plywood inner surface, XPS insulation in between
-
LED signaling system (HELLA)

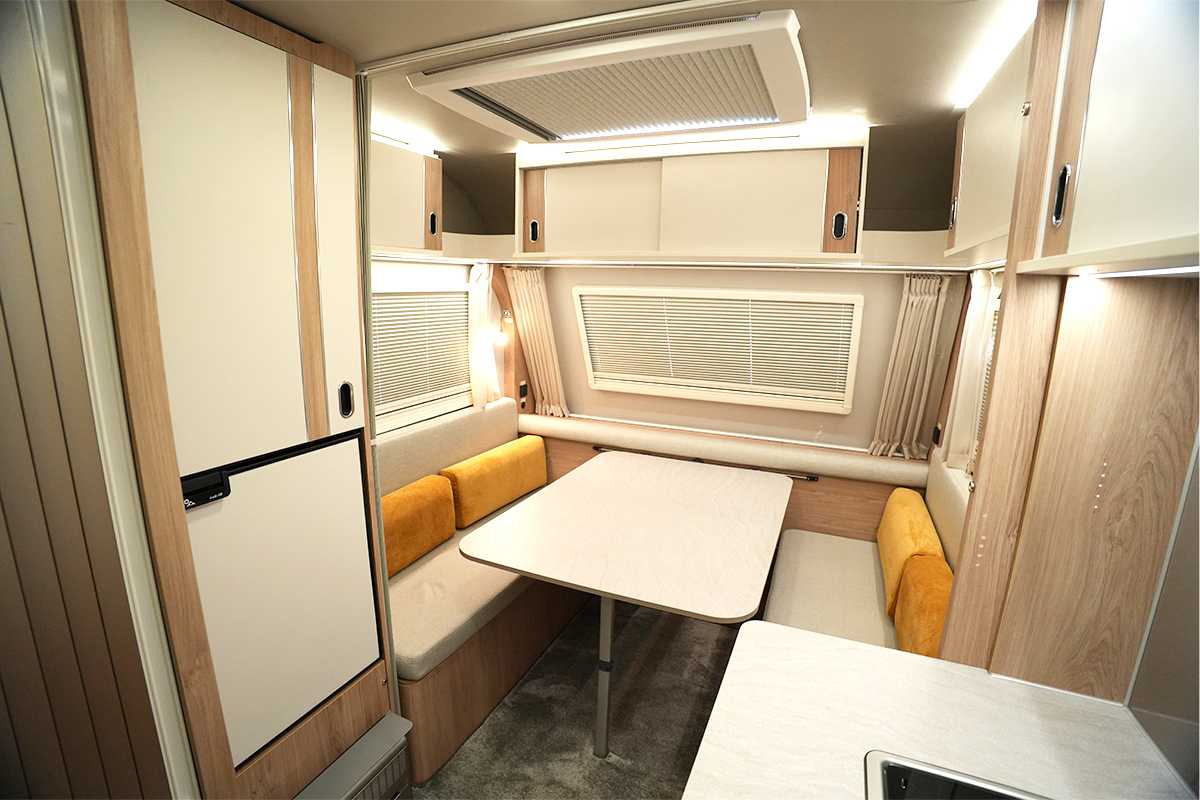

Interior
-
Furniture materials imported lightweight wood material with wood laminate coating
-
390U: Seating area for 4 people at the front, also a double bed area
-
390U: Seating area for 2 people at the rear, also a single bed area
-

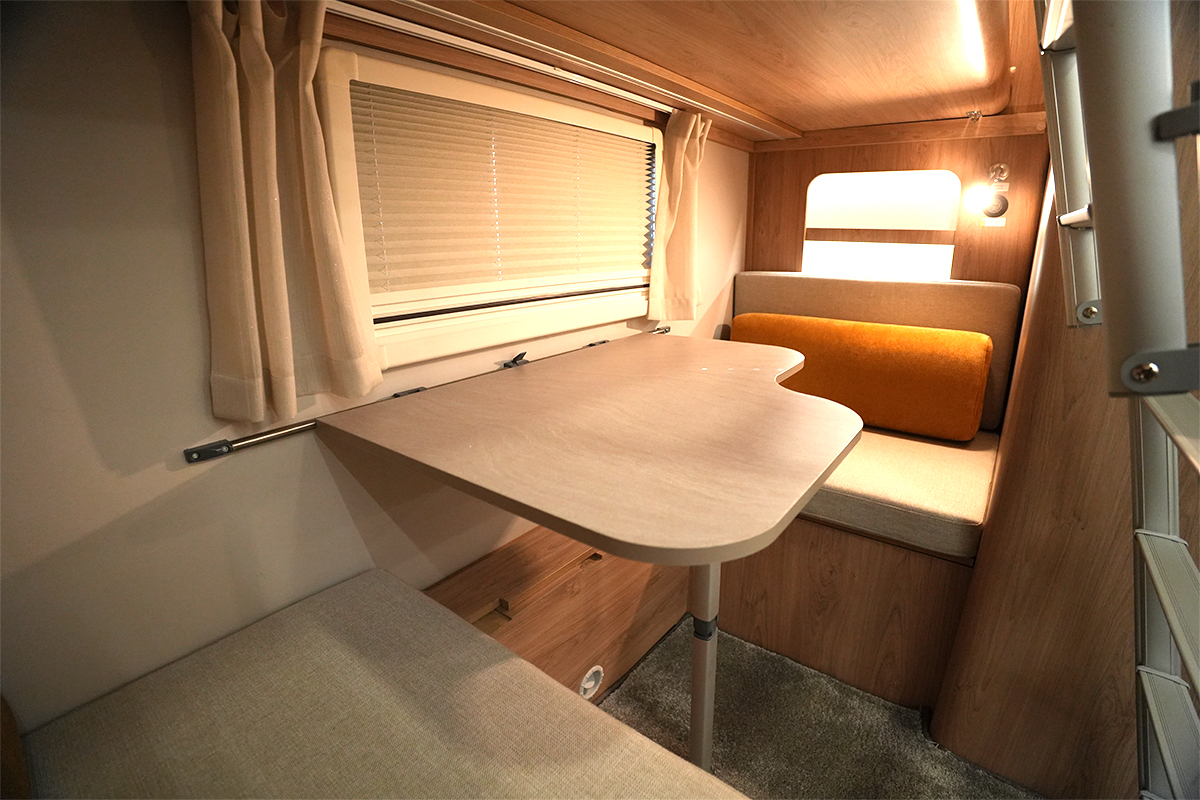

390R: Seating area for 4 people at the front, also a double bed area
-

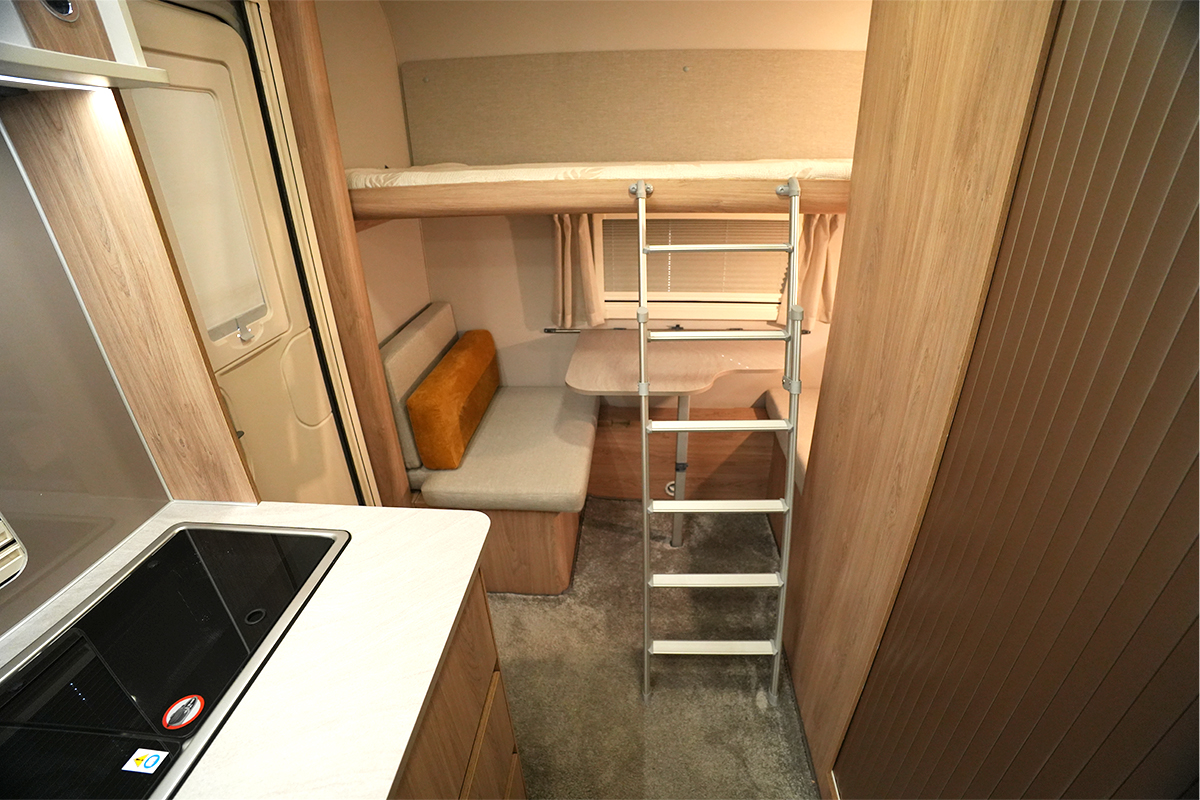

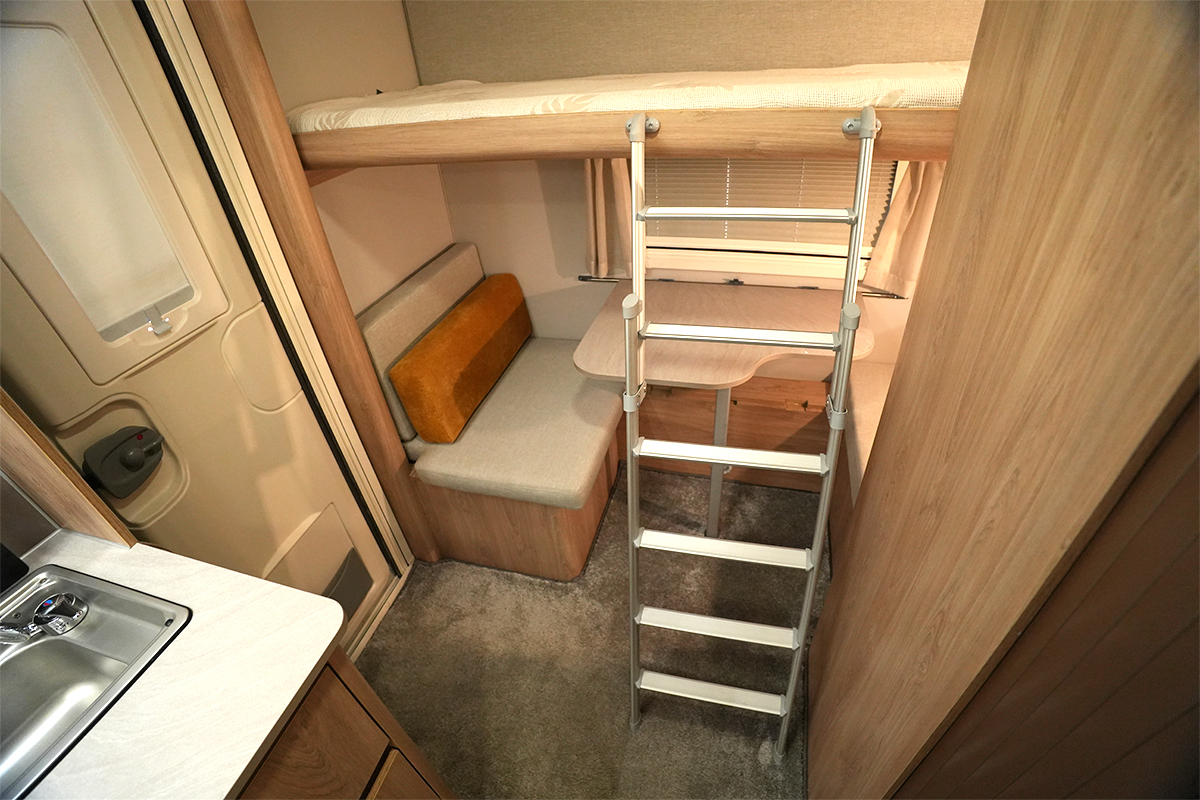

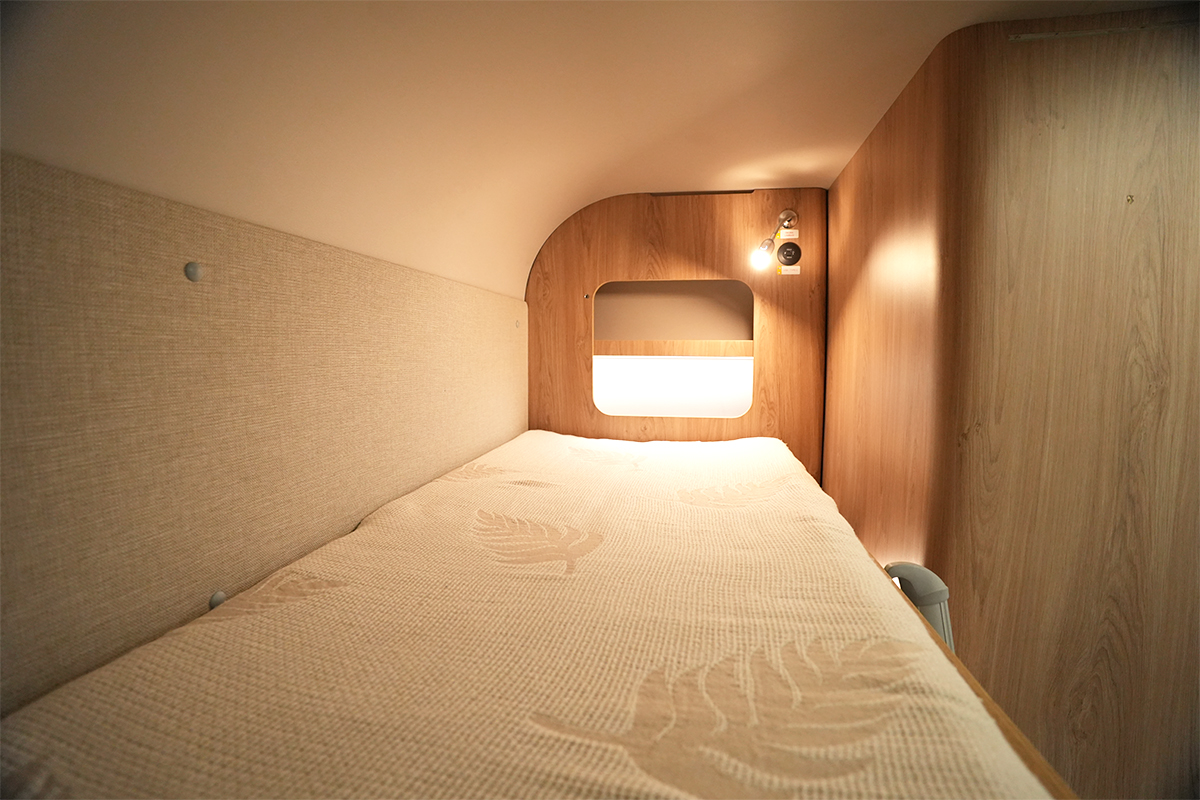

390R: Seating area for 2 people at the rear, also a double bunk bed area
-
Adjustable table leg in seating areas
-
Accordion curtain separating the sleeping area
-
Storage areas over seating, kitchen, and bed areas

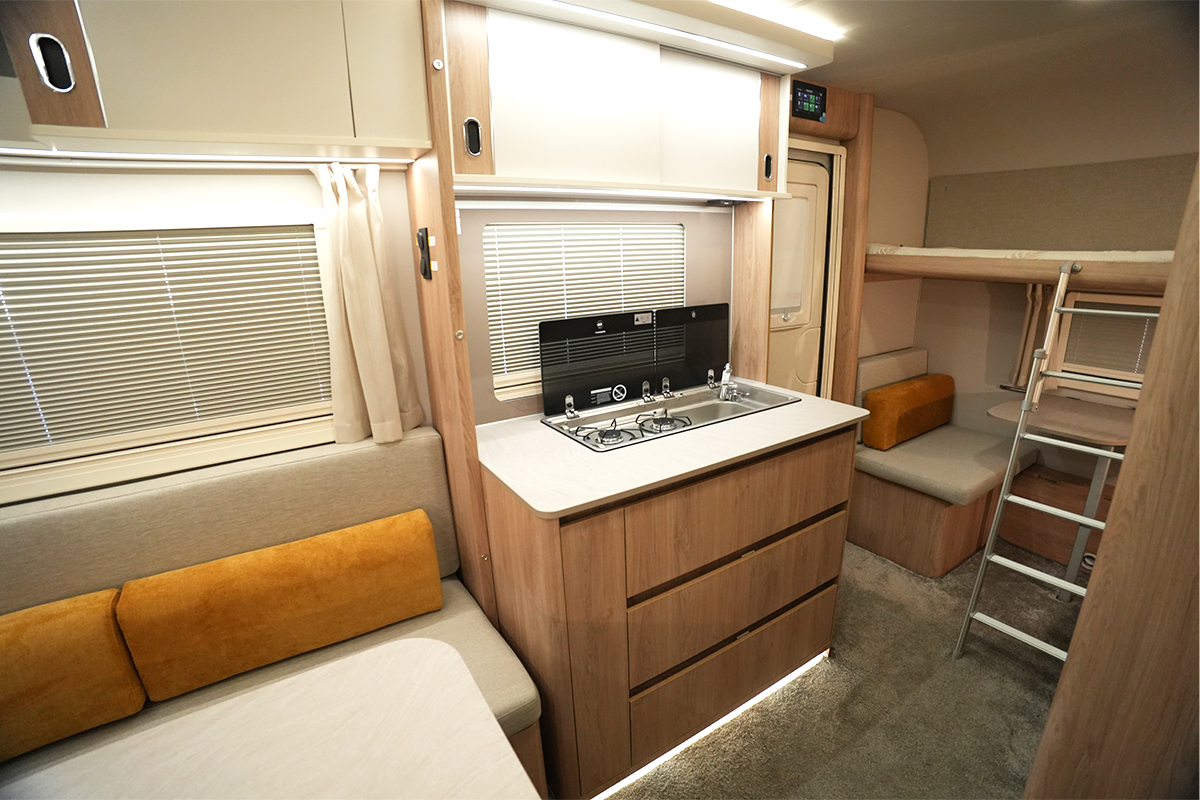

Kitchen
-

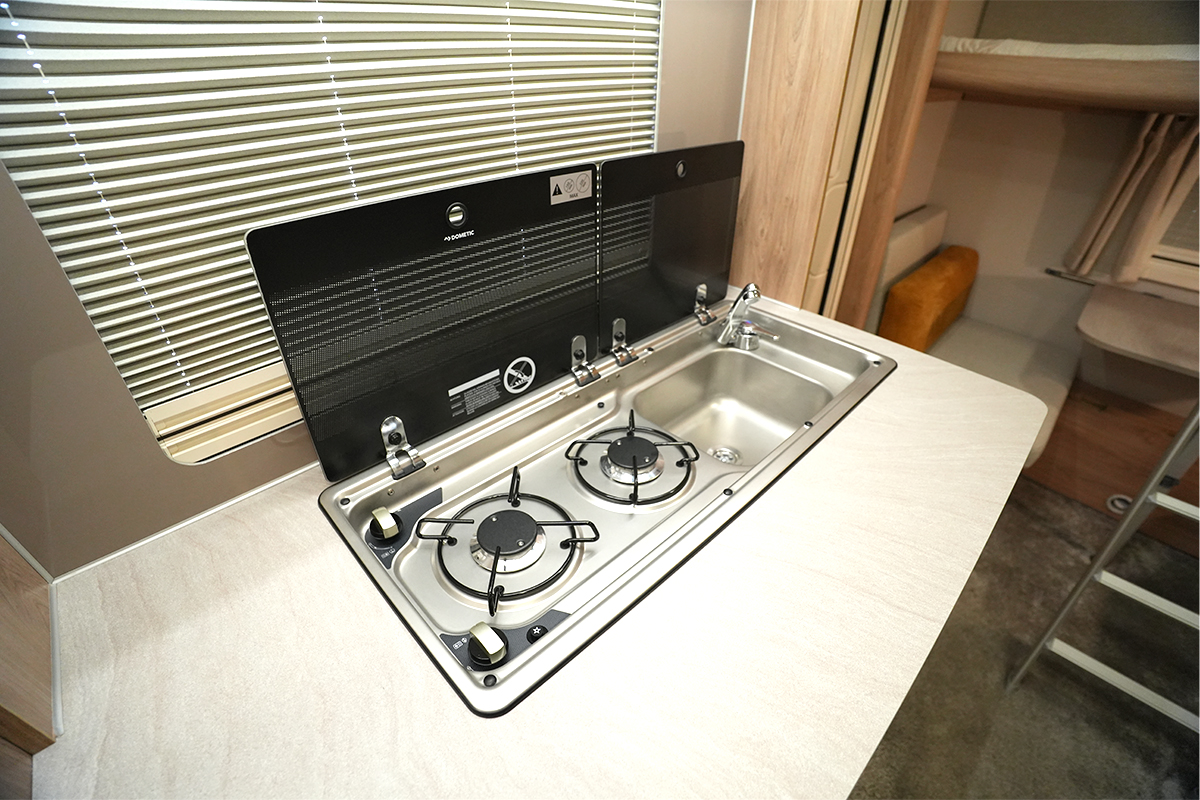

Double-burner gas stove and sink (DOMETIC)
-
Folding sink tap (REICH)
-
Refrigerator 85 liters, 12V (INDEL B)

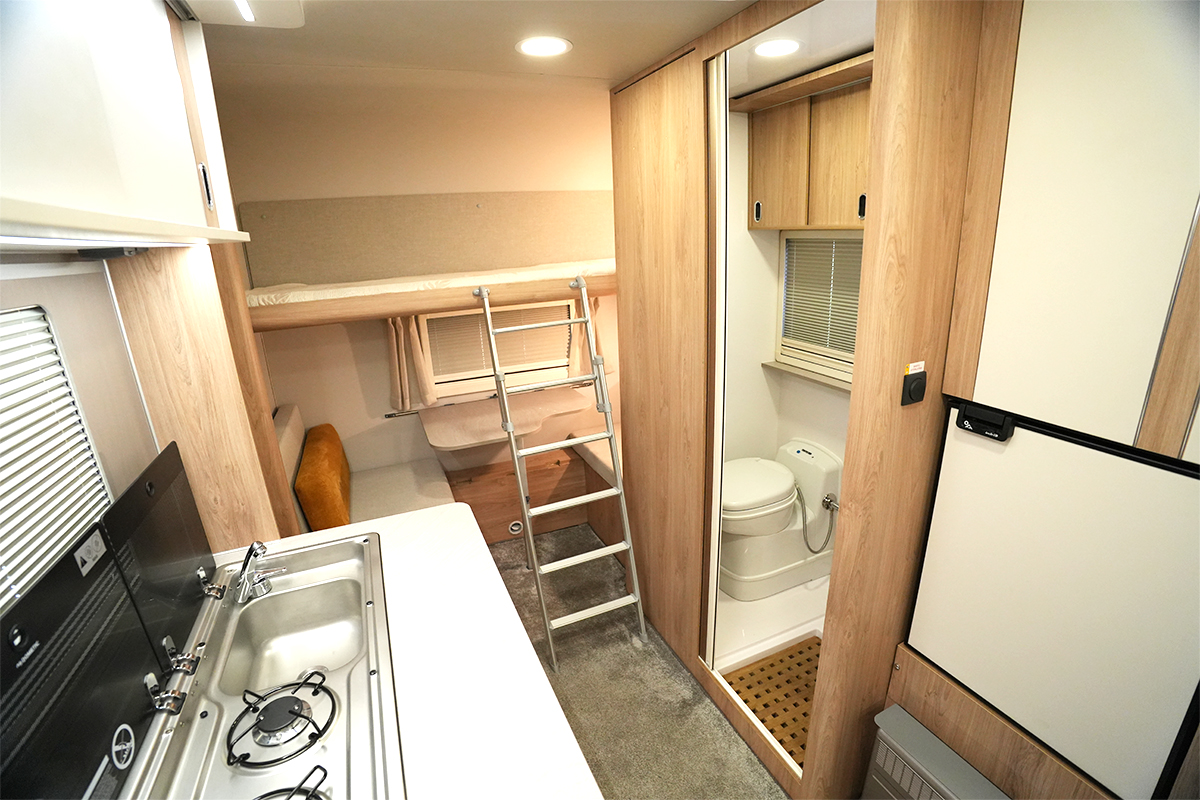

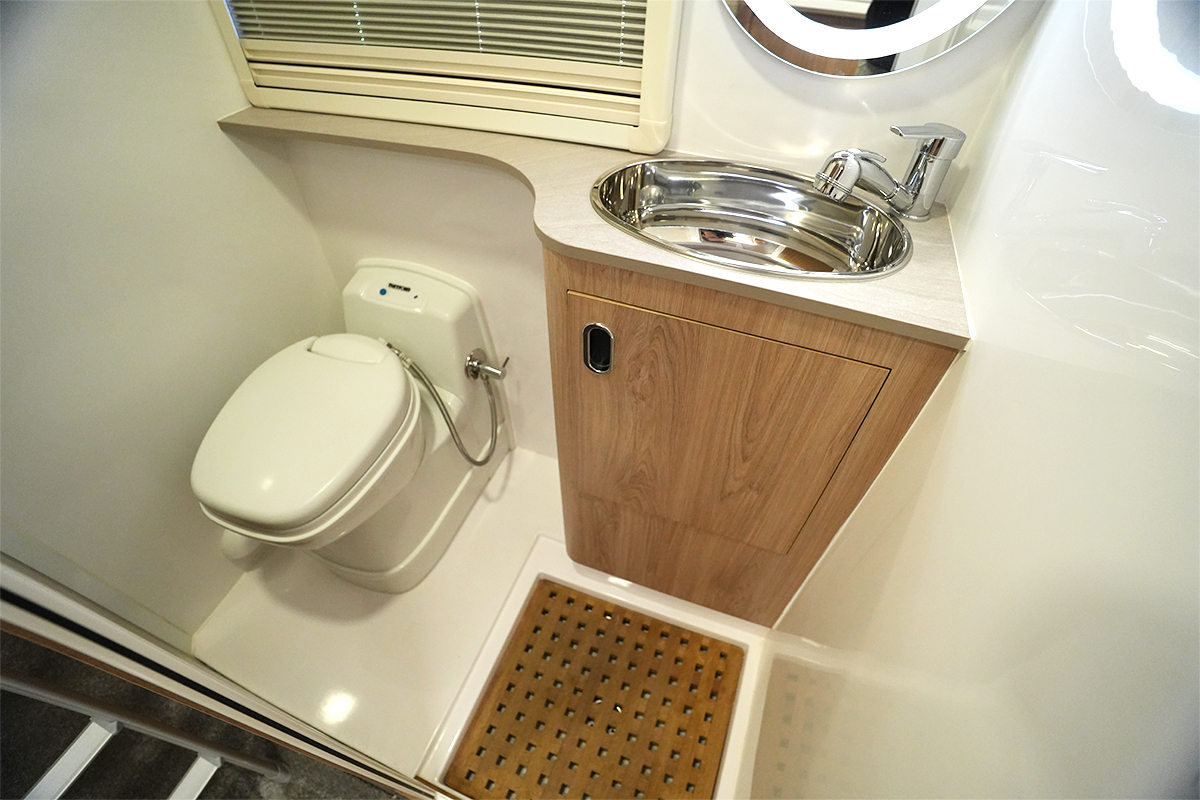

Bathroom/WC
-
Toilet, cassette type with bidet spray (THETFORD)
-
Bathroom tap with spiral and trigger (COMET)
-
Fresh water tank, PP material 55 liters
-
Fresh water filling point (ABL)
-
Mains water connection (ABL)
-
Water pump 12V
-
Water plumbing, resistant to -30°C / +90°C and 10 bar pressure
Lighting
-
Reading lamps in the seating area
-
LED ambiance lighting under and over cabinets
-
Ceiling spot lighting
-
Bathroom cabin LED and spot lighting
-
Floor lighting, blue, 12V
-
External lighting
Heating
-
Gas space heater, S2200 (TRUMA)
-
Warm air distributor, vents with rotating heads (TRUMA)
-
Water heater, Therme, 220V (TRUMA)
Windows and Ventilation
-
Window with blind and fly screen, double glazed, 120 cm x 50 cm, 2 units (ACRYFORM)
-
Window with blind and fly screen, double glazed, 90 cm x 50 cm, 2 units (ACRYFORM)
-
Window with blind and fly screen, double glazed, 70 cm x 50 cm, 2 units (ACRYFORM)
-
Window with blind and fly screen, double glazed, 70 cm x 35 cm, 1 unit (ACRYFORM)
-
Roof window with blind and fly screen, 50 cm x 70 cm, 1 unit (MPK)
-
Roof window with blind and fly screen, 40 cm x 40 cm, 1 unit (MPK)
-
Caravan door and fly screen (HARTAL)
Electrical System
-
Control and indicator panel, touch, 12V (OCTOOP!)
-
12V fuse panel
-
12V USB-Type C power outlet, 4 units
-
220V fuse panels
-
220V power outlet, 4 units
-
Outdoor combined TV and 220V input (ABL)
-
220V, 16A, external energy connection IP44 (ABL)
-
2.5 m power cable for 220V external energy connection
-
Vehicle connection socket, 13-pin
Gas Systems
-
Steel drawn pipe for gas line
-
Gas valve (GOK)
-
Gas regulator (GOK)
-
Gas hose butane/propane (GOK)
-
Gas filter (GOK)
-
Mini caravan gas cylinder, 2 kg
Options
-
Reinforced chassis, 1500 kg (AL-KO)
-
Anti-sway system, ATC-2 (AL-KO)
-
Support legs, electric automatic, Up4 (AL-KO)
-
Front jockey wheel with weight scale and jack, 300 kg (AL-KO)
-
Mover, full/semi-automatic (AL-KO)
-
Alloy wheels (AL-KO)
-
Spare tire 185/R14/C (AL-KO)
-
Air conditioner, 1700W (TRUMA)
-
Water heater, B10, gas (TRUMA)
-
Combi 4E (TRUMA)
-
Energy set (Solar Panel 205W Monocrystalline + Leisure Battery 105 Ah AGM + MPPT Charge Controller)
-
Solar panel 205W, in addition to energy set
-
Rectifier, 30A (VICTRON)
-
Inverter, 1000W (LINETECH)
-
Inverter, 2000W (LINETECH)
-
Awning, cassette type (THULE)
-
Awning, bag type (THULE)
-
Gas detector, Butane/Propane gas, 12V (CBE)
-
Outdoor shower, hot/cold
-
Outdoor gas inlet point (ABL)
-
Bicycle carrier (THULE)
-
Grey water tank, 23 Lt (FIAMMA)
-
TV, 12V/220V and TV holder
-
Caravan door, double opening (HARTAL)
