Expeda Ducato

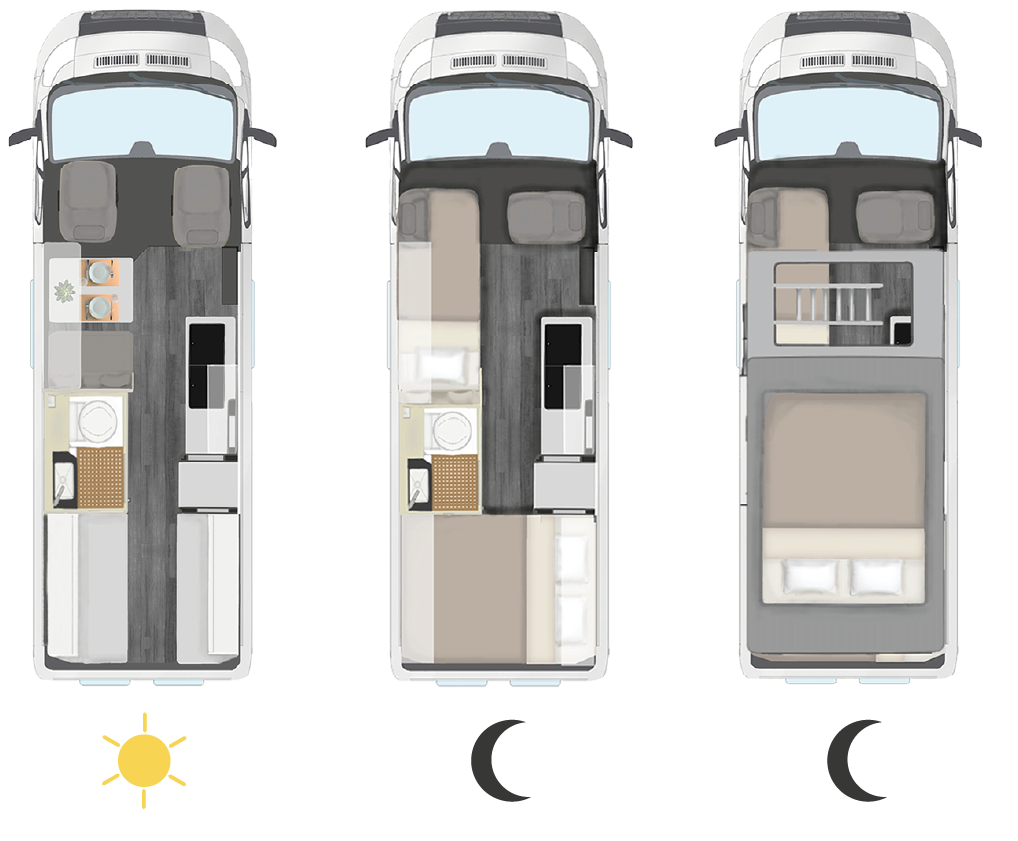

Expeda Ducato transforms into a social living space by day and a comfortable bedroom by night.

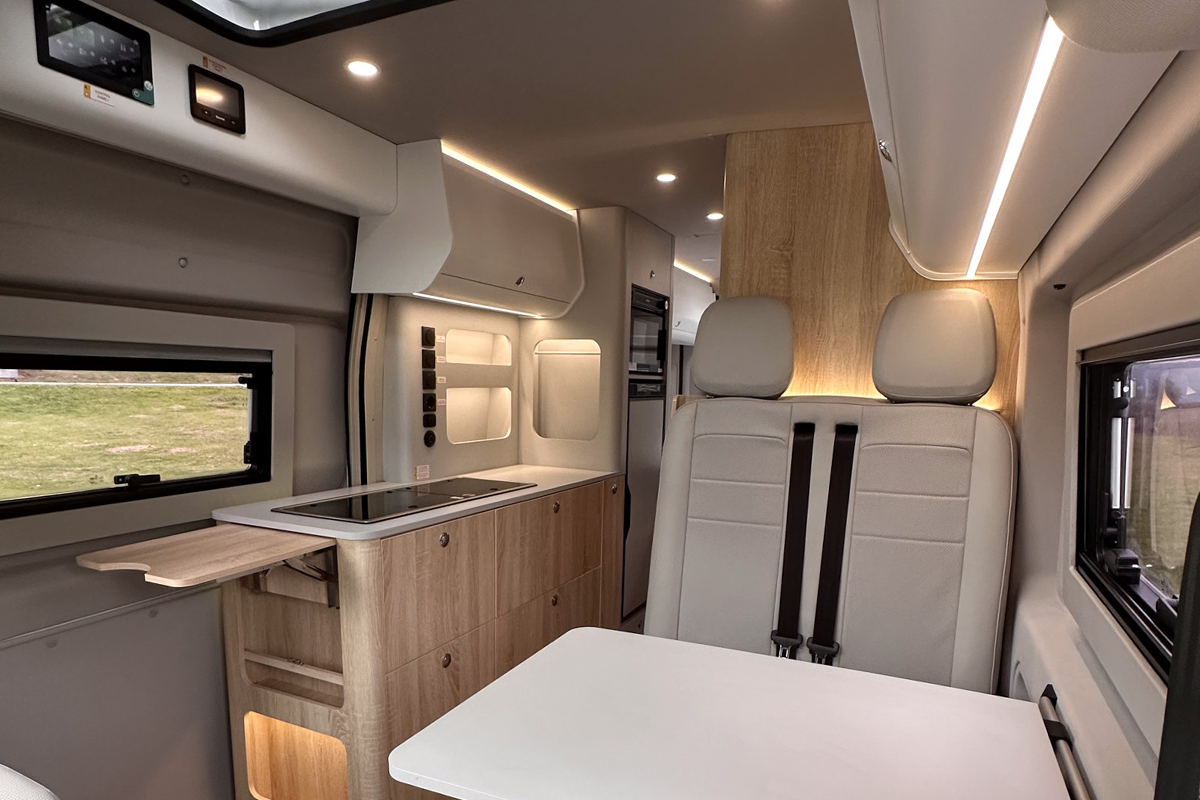

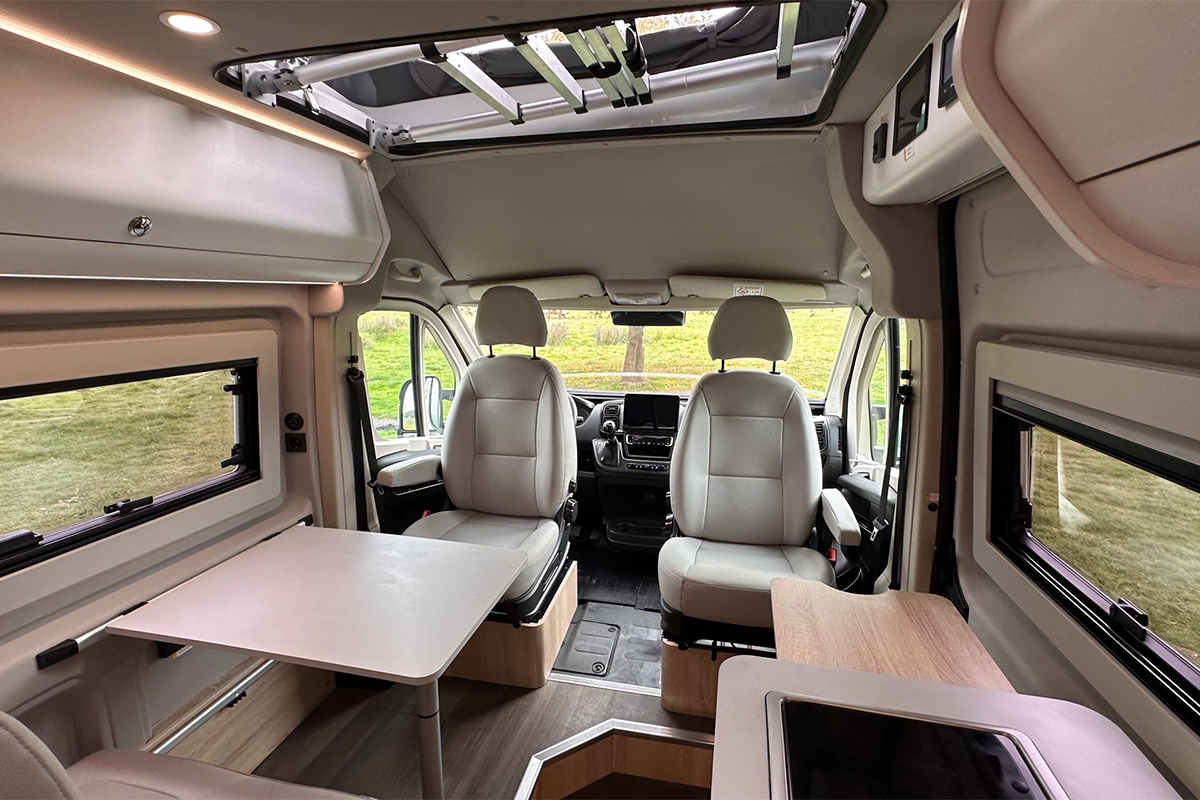

Day: It creates a spacious seating and dining area thanks to its swivel seats. The kitchen and other living areas meet all your needs.

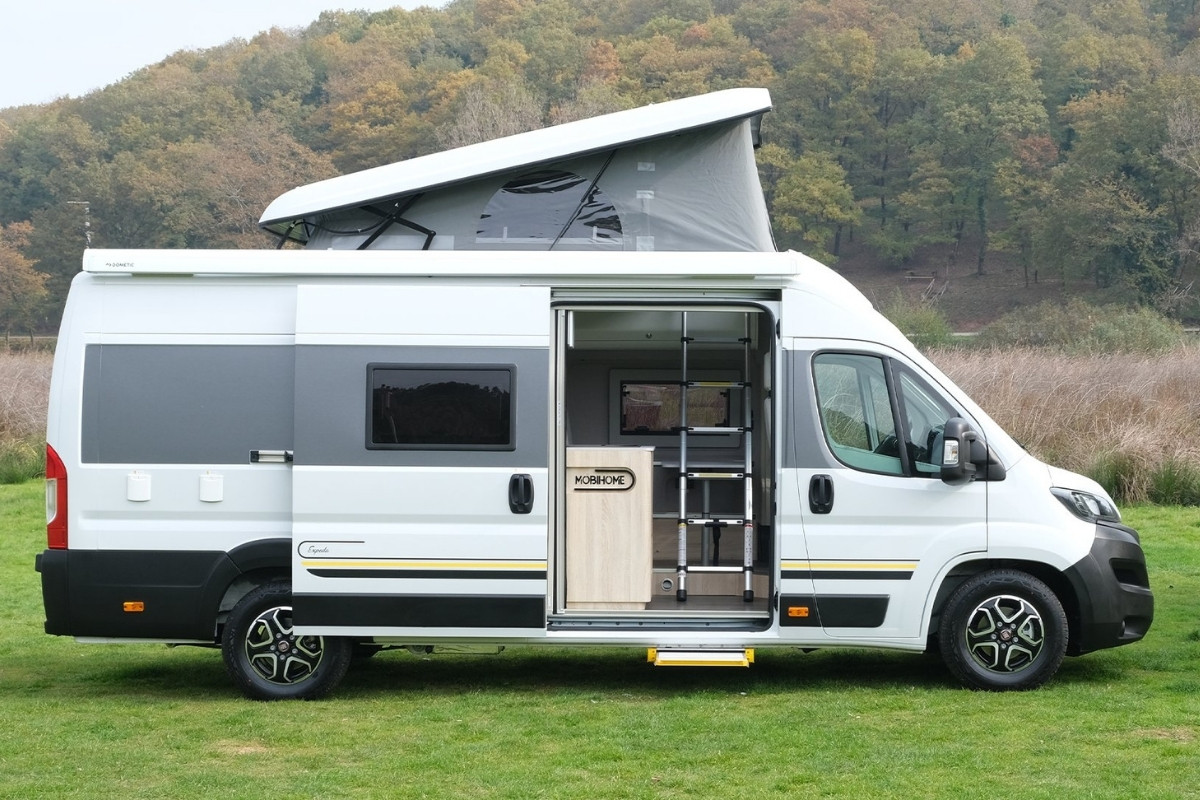

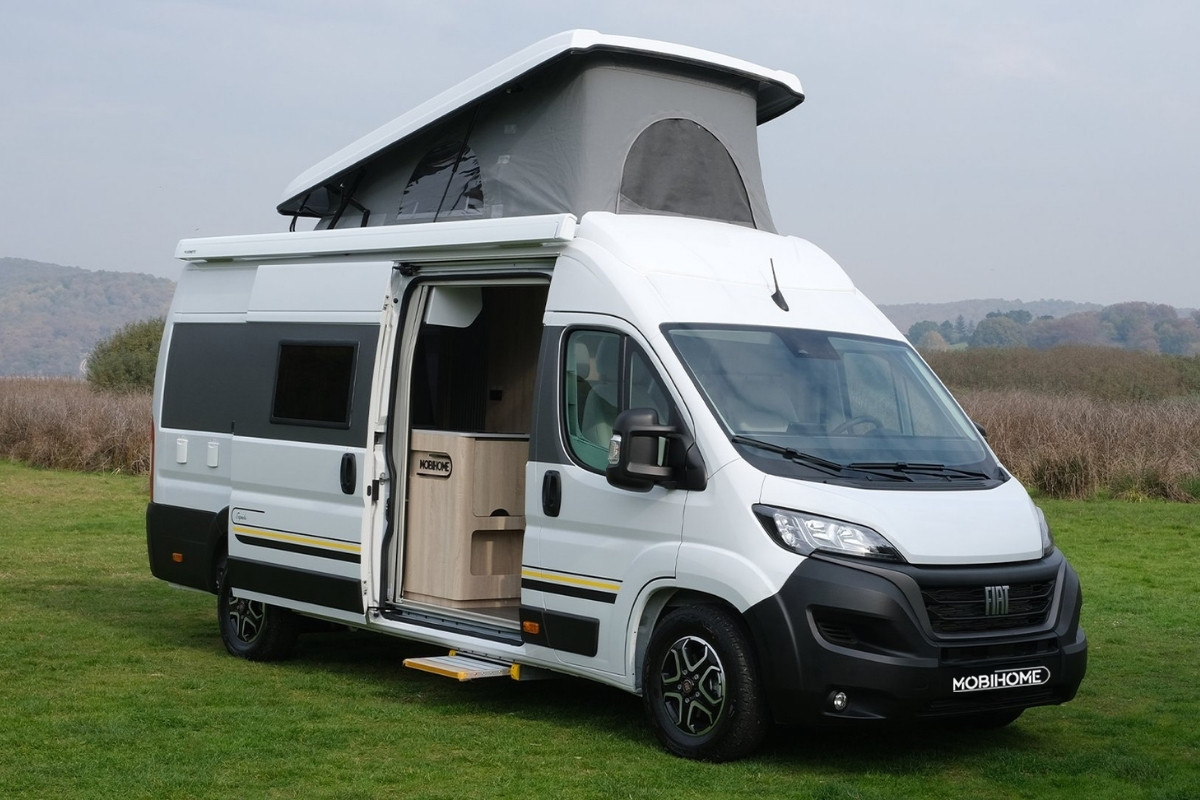

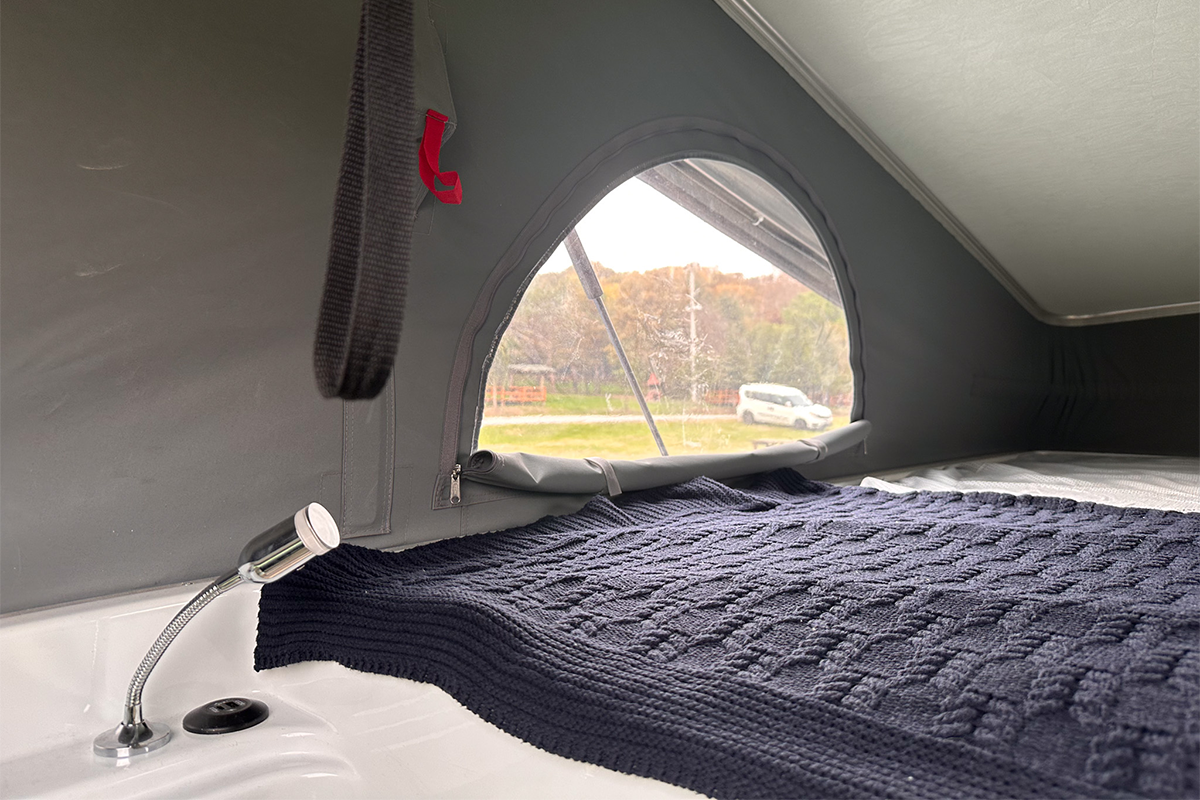

Night: The rear seating group easily converts into a double bed. An additional sleeping area can be provided with the pop-up roof feature.

Expeda Ducato is ideal for a comfortable and versatile caravan experience.

Standard Equipment

2-Year Manufacturer Warranty - 10-Year Spare Parts Warranty

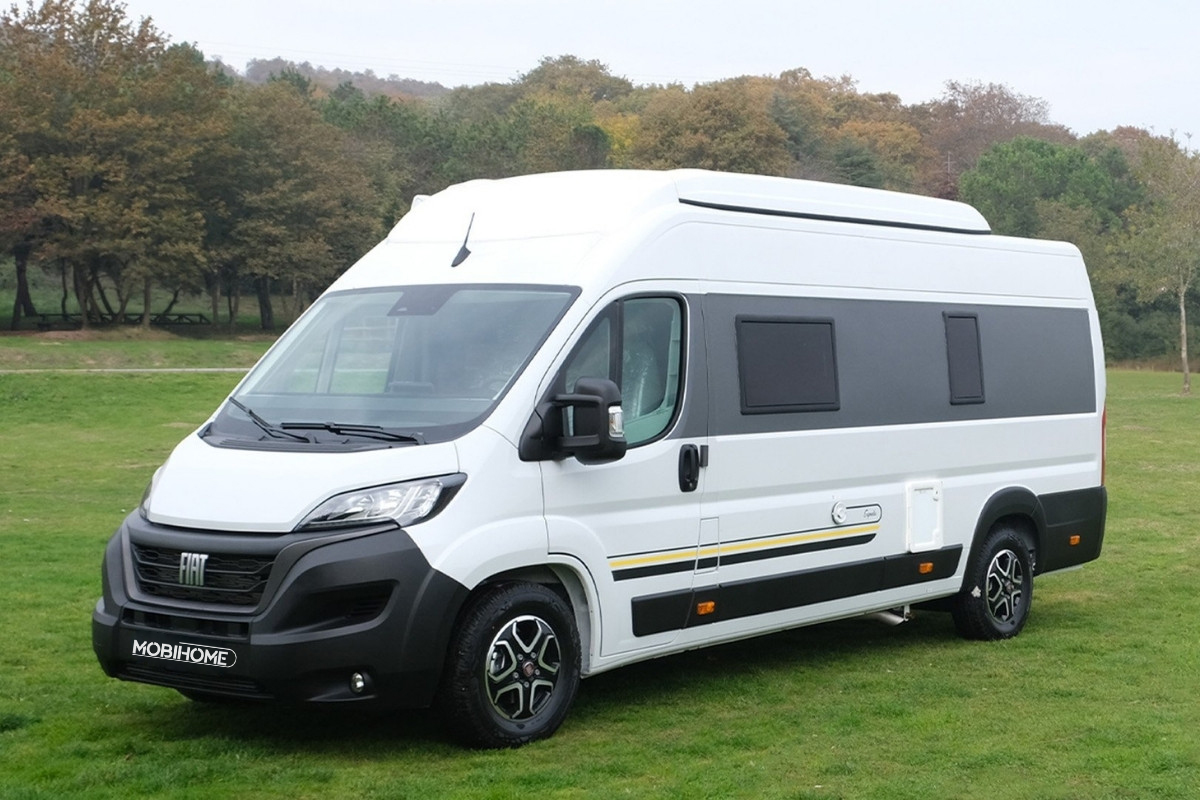

Expeda Ducato offers a comfortable and independent travel experience with its functional design and rich interior equipment. Built on the Fiat Ducato chassis, this model is an ideal caravan for both city driving and long journeys, thanks to its 180 hp engine power and the comfort of an automatic transmission.

With a total length of 6363 mm, width of 2050 mm, and height of 2700 mm, Expeda Ducato provides a comfortable living space for a family of four (3+1) through its cleverly planned interior and strong technical infrastructure. The 140-liter fresh water and 105-liter waste water tank capacities maximize your independent travel duration.



Technical Specifications Interior Equipment
Brand Model Fiat - Ducato Passenger Capacity 3+1 People
Engine Power 180 hp Bed Capacity 4 People
Engine Displacement 2183 cm³ Front Bed Area 1300 x 1850 mm
Transmission Type Automatic Rear Bed Area 1400 x 1880 mm
Drivetrain 4x2 (Front-Wheel Drive) Fresh Water Tank 140 Lt
Total Length 6363 mm Waste Water Tank 105 Lt
Width 2050 mm
Height 2700 mm
Tire Size 215/75 R16




Exterior

  • Retractable step at the sliding door entrance, 55 cm (MOBIHOME)

  • Sticker application on vehicle window frames (ORACAL)

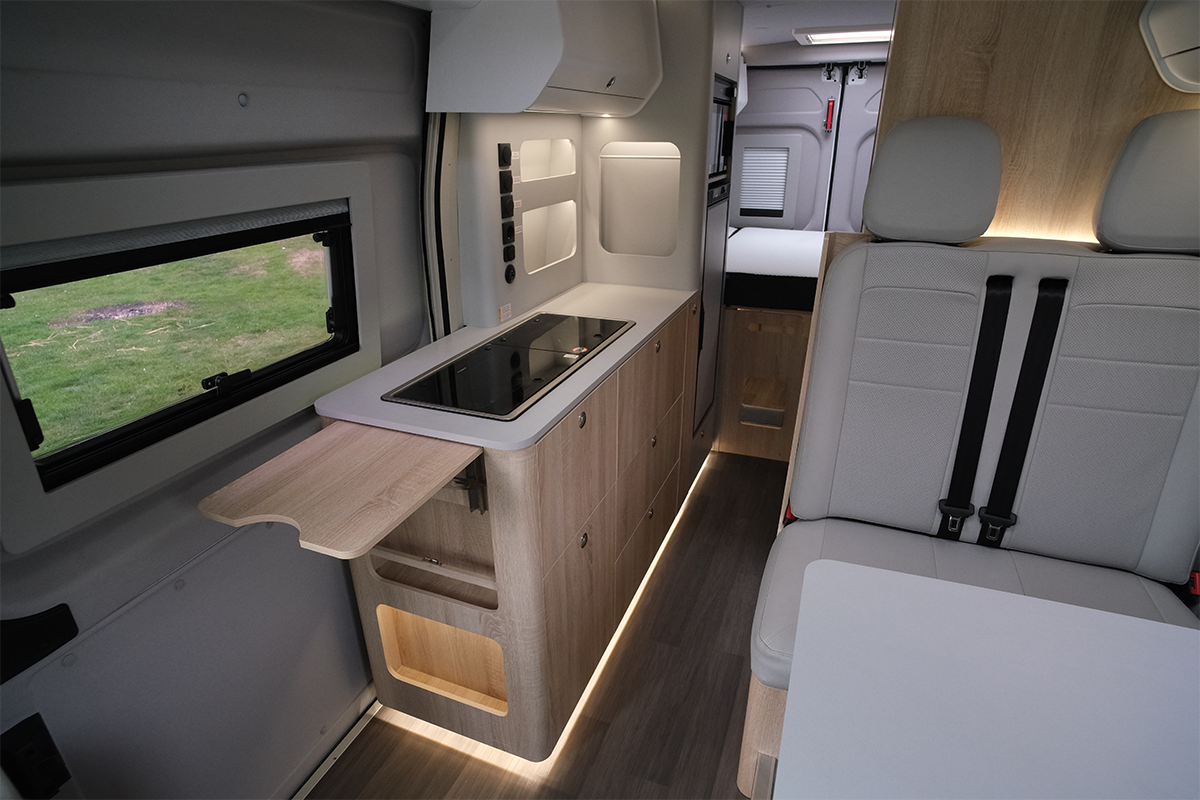

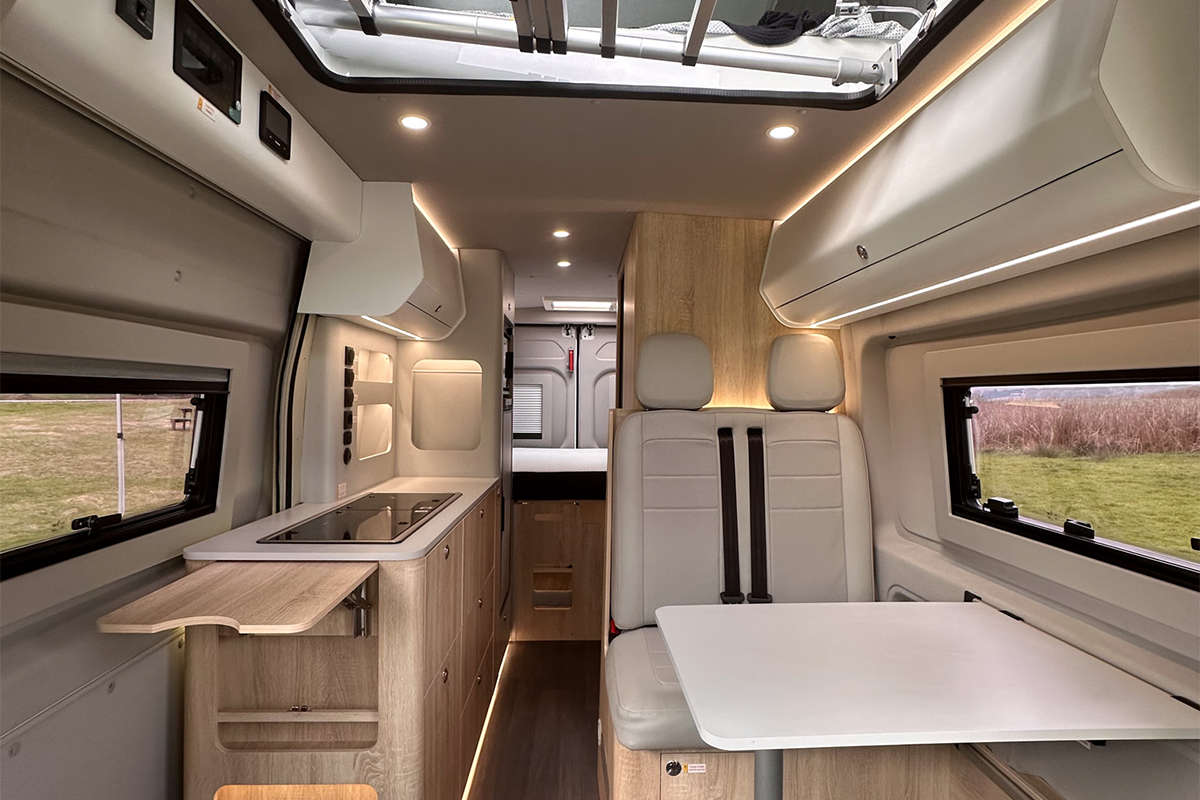

Interior

  • Furniture materials imported lightweight wood material with wood laminate coating

  • Double seat with 3-point seat belts, isofix connection, faux leather / fabric upholstery

  • Driver and passenger seats with swivel mechanism, faux leather / fabric upholstery

  • Table leg and top (İLSE TEKNİK)

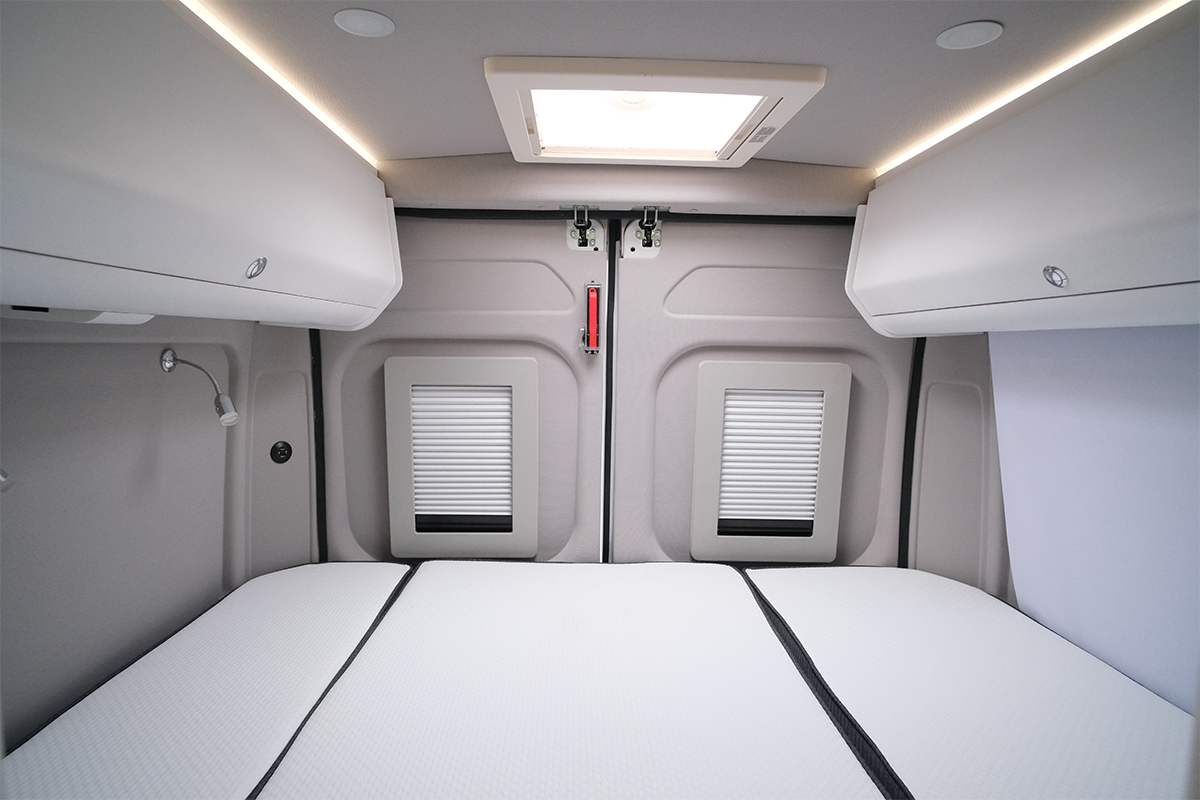

  • Double rear bed area and front bed area convertible from the double seat

  • Storage areas above bed, kitchen, and seating areas

  • Cabinet doors with locking mechanism

  • All ceiling and side panels upholstered in faux leather / fabric

  • Insulation, aluminum-coated melamine foam



Kitchen

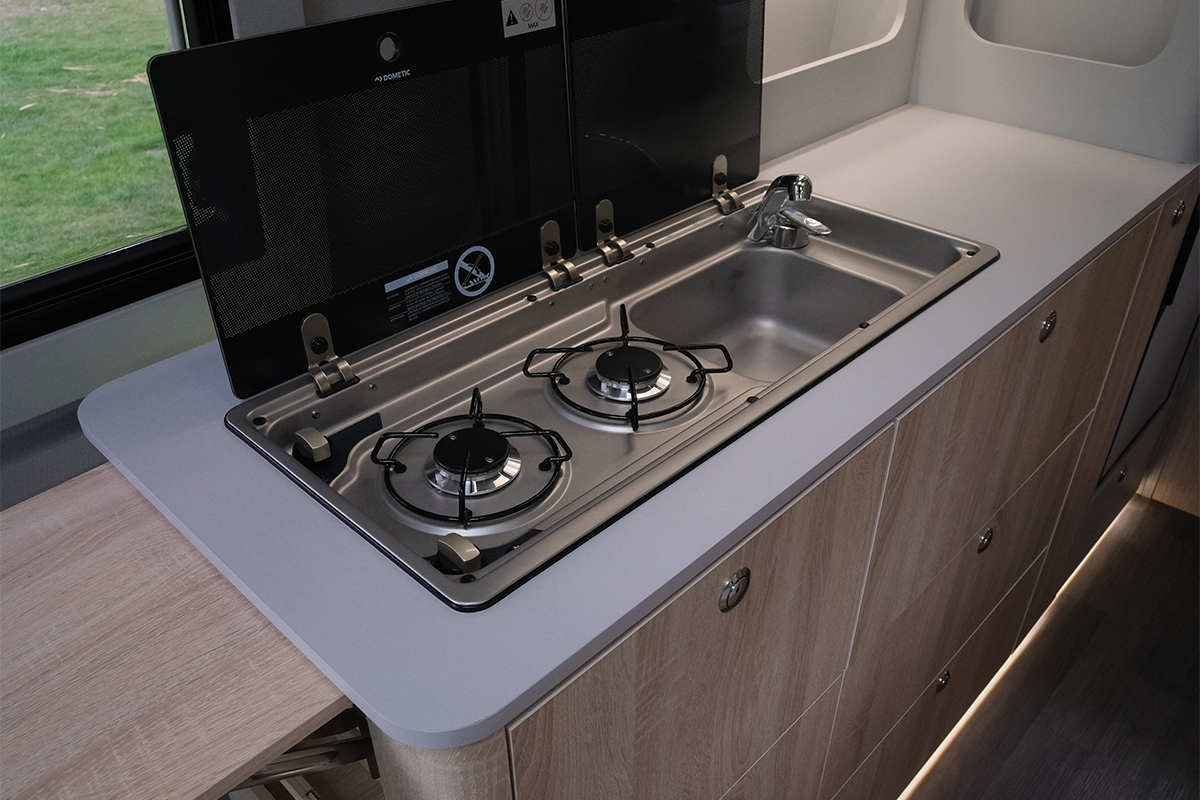

  • Double-burner gas stove and sink (DOMETIC)

  • Folding sink tap (FLORENZ)

  • Refrigerator, 85 Lt, 12V (INDEL B)

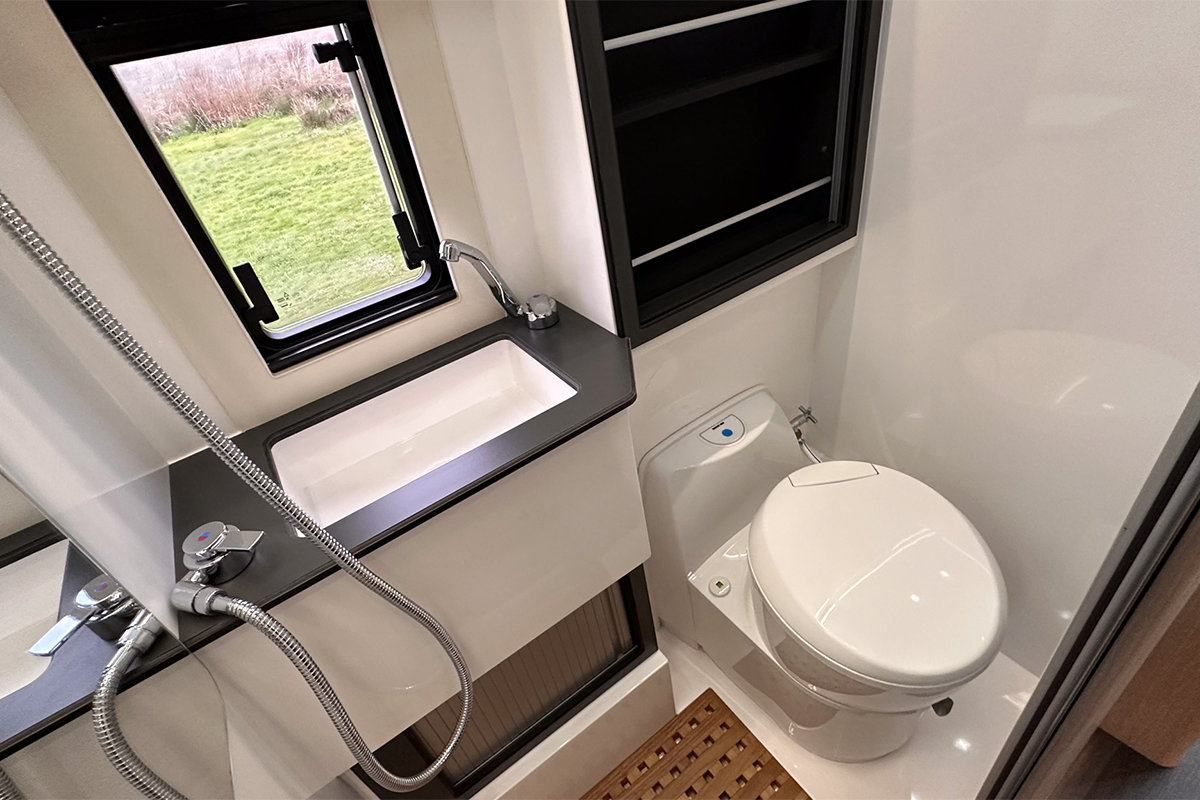

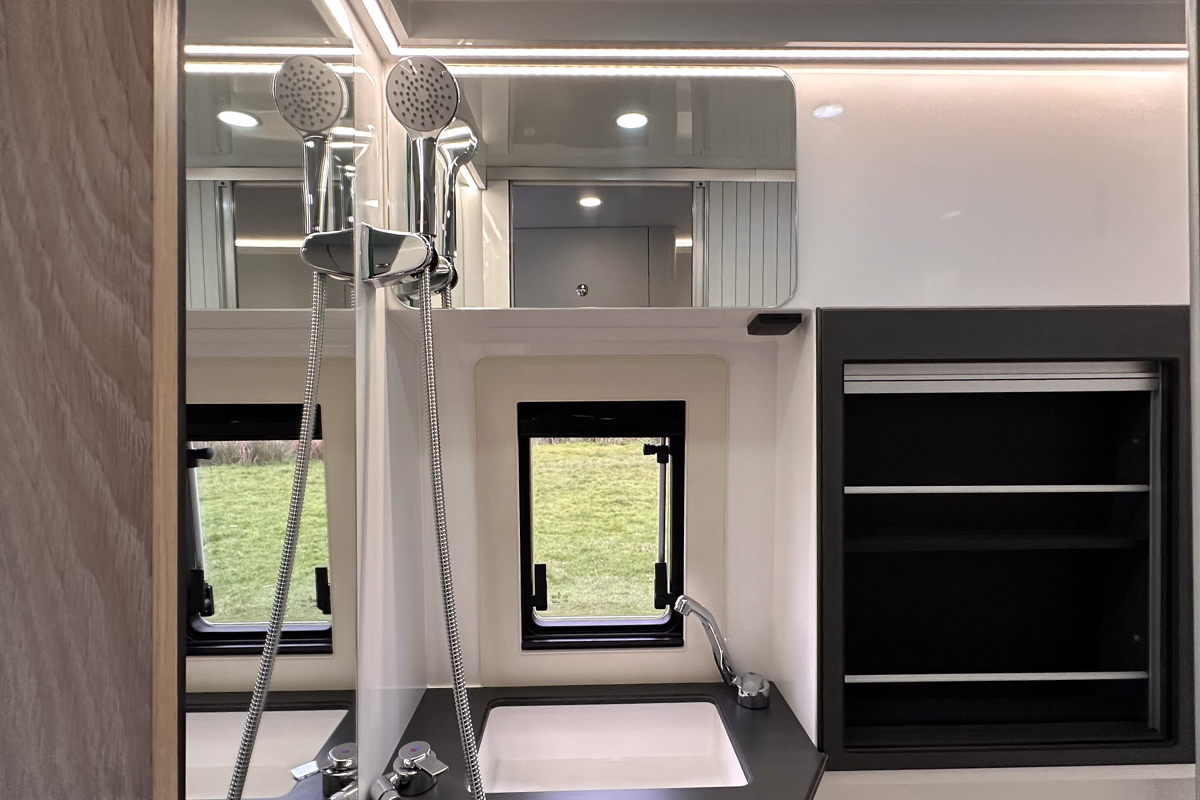

Bathroom/WC

  • Toilet, cassette type with bidet spray (THETFORD)

  • Bathroom tap with spiral and trigger (COMET)

  • Fresh water tank, PP material 140 Lt

  • Waste water tank, FRP material 105 Lt

  • Fresh water filling point (ABL)

  • Outdoor shower, hot/cold

  • Water pump, 12V (LILIE)

  • Water plumbing, resistant to -30°/+90°C and 10 bar pressure



Lighting

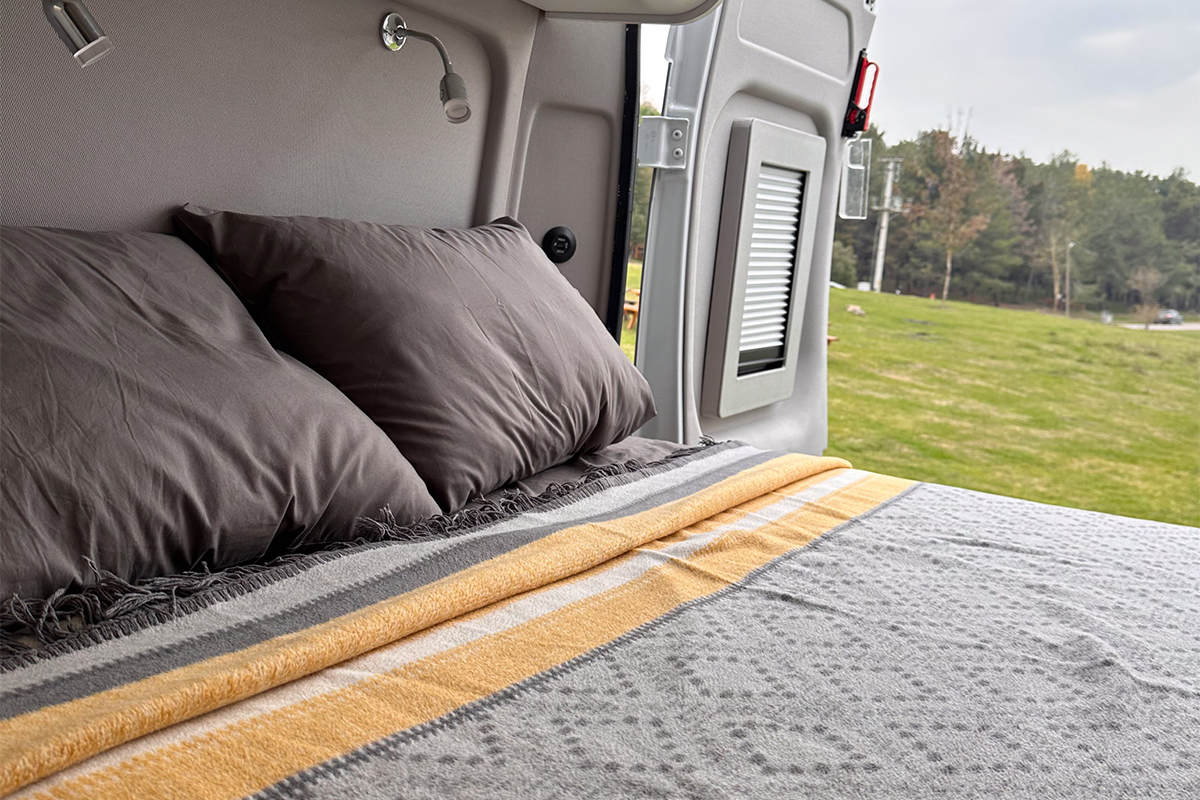

  • Reading lamps at the head of the rear bed, 2 units

  • LED ambiance lighting under and over cabinets

  • Ceiling spot lighting, warm white

  • Bathroom cabin LED and spot lighting

  • Floor lighting, blue, 12V

  • External lighting



Heating

  • Combi D4 (TRUMA)

  • Frost protection water drain valve (TRUMA)



Windows and Ventilation

  • Window with blind and fly screen, double glazed, 90 cm x 50 cm, 2 units (ACRYFORM)

  • Roof window with blind and fly screen, 40 cm x 40 cm, 2 units (DOMETIC)

  • Roof ventilation window with fan, 12V, 40 x 40 cm (FIAMMA)



Electrical System

  • Control and indicator panel, touch, 12V (OCTOOP!)

  • Leisure battery, 12V-105 Ah-AGM, 1 unit (VARTA)

  • Rectifier, 220V/12V-16A (CBE)

  • Smart DC/DC charger, 12V-30A, Orion (VICTRON)

  • Inverter, 1000W (LINETECH)

  • Inverter control switch (VICTRON)

  • 12V fuse panel

  • 12V USB-Type C power outlet, 3 units

  • 12V cigarette lighter power outlet, 2 units

  • 220V fuse panel

  • 220V power outlet, 3 units

  • Outdoor combined TV and 220V input (ABL)

  • 220V, 16A, external energy connection IP44 (ABL)

  • 2.5 m power cable for 220V external energy connection



Gas System

  • Steel drawn pipe for gas line

  • Gas valve (GOK)

  • Gas regulator (GOK)

  • Gas hose propane/butane (GOK)

  • Gas filter (GOK)

  • Mini caravan gas cylinder, 2 kg



Options

  • Air conditioner, 1700W, Aventa Compact (TRUMA)

  • Inverter, 2400W, Phoenix Smart 12/3000 (VICTRON)

  • Solar panel, monocrystalline 190W (LEXRON) + MPPT (VICTRON)

  • Additional solar panel, monocrystalline 190W (LEXRON)

  • Leisure battery, 12V-210 Ah-AGM (VARTA)

  • Leisure battery, 12V-210 Ah Lithium

  • Rectifier, 30A EC330 (LINETECH)

  • Panorama window (MOBIHOME)

  • Additional external LED lighting

  • Awning 4.00 m x 2.50 m (THULE)

  • Rear door window with blind and fly screen, double glazed, 45 cm x 50 cm (DOMETIC)

  • Rear door window with blind and fly screen, double glazed, 35 cm x 50 cm (ACRYFORM)

  • Fly screen on sliding door (REMIS)

  • Front cabin blind set (REMIS)

  • TV, 12V/220V and TV Holder

  • Rear view camera and screen

  • Gas detector, butane/propane gas, 12V (CBE)

  • Gas detector, carbon monoxide, 12V (CBE)

  • Refrigerator, 80 Lt, 12V (DOMETIC)

  • Refrigerator, 90 Lt, 12V (THETFORD)

  • Refrigerator, 138 Lt, 12V (THETFORD)

  • Oven, 420 Oven, 12V (THETFORD)

  • Bicycle carrier (THULE)

  • Pop-Up roof
